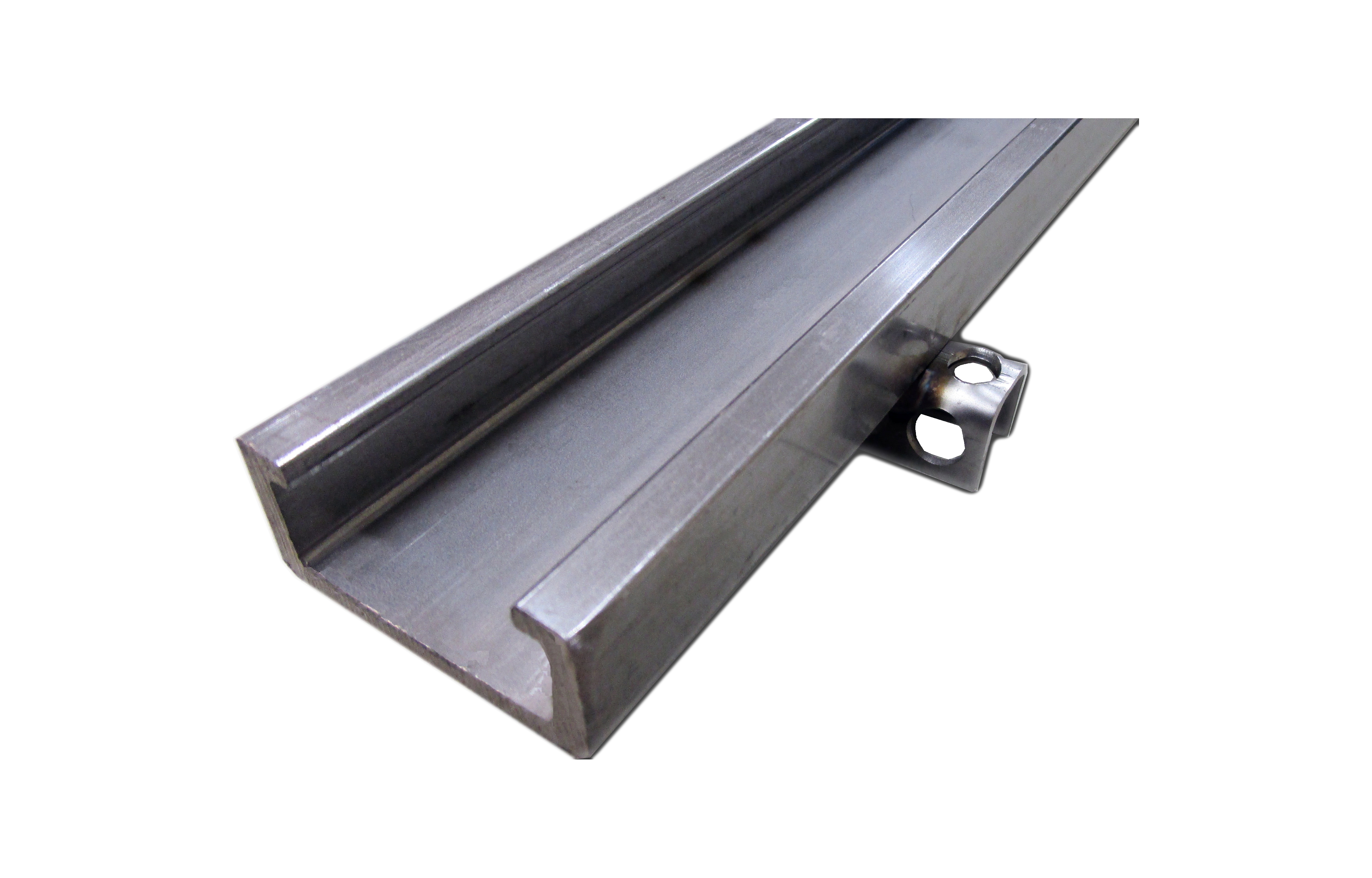

Stainless steel support SUP2

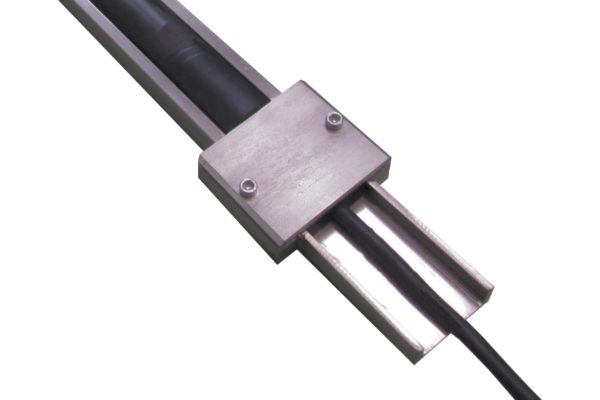

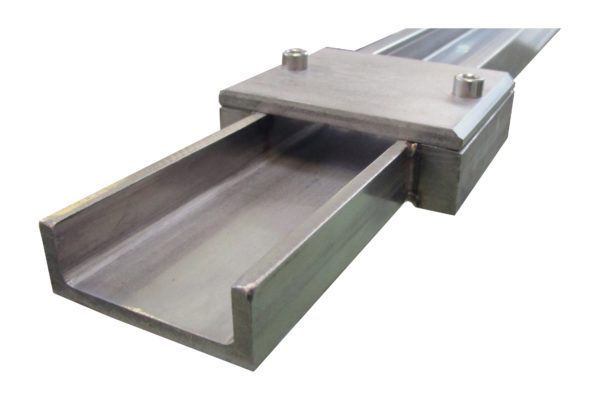

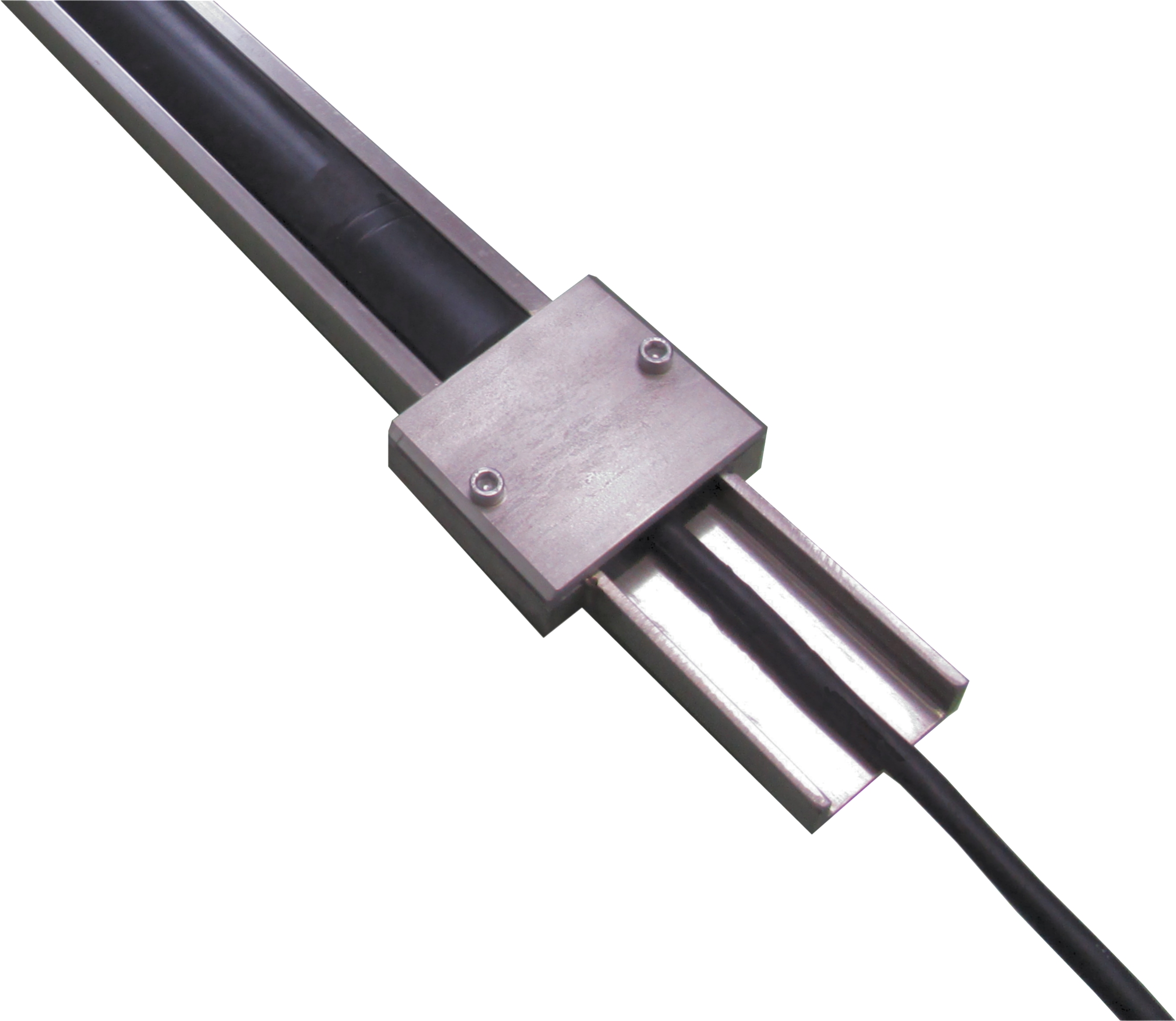

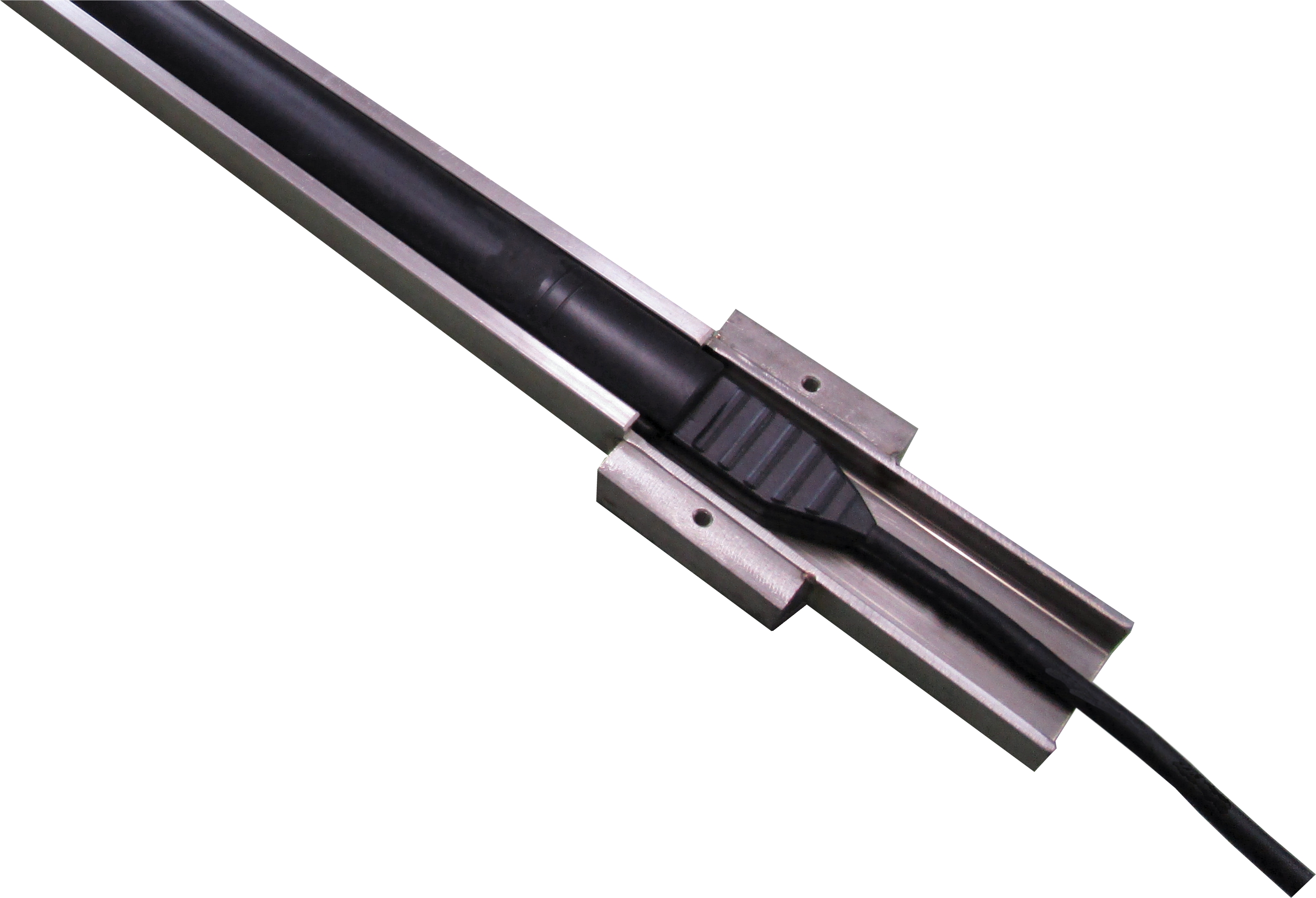

The SUP support’s flange must be installed in a slot in the pavement to protect the resistive sensor sleeve.

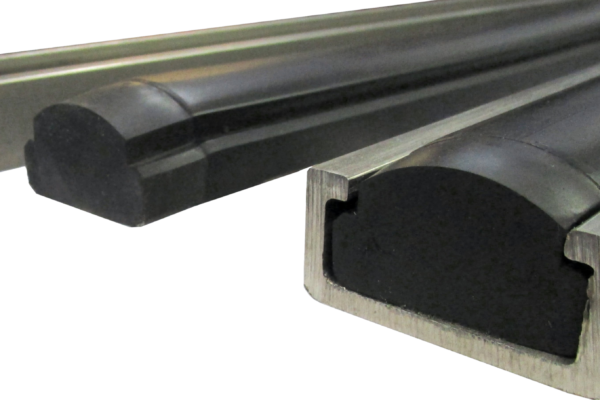

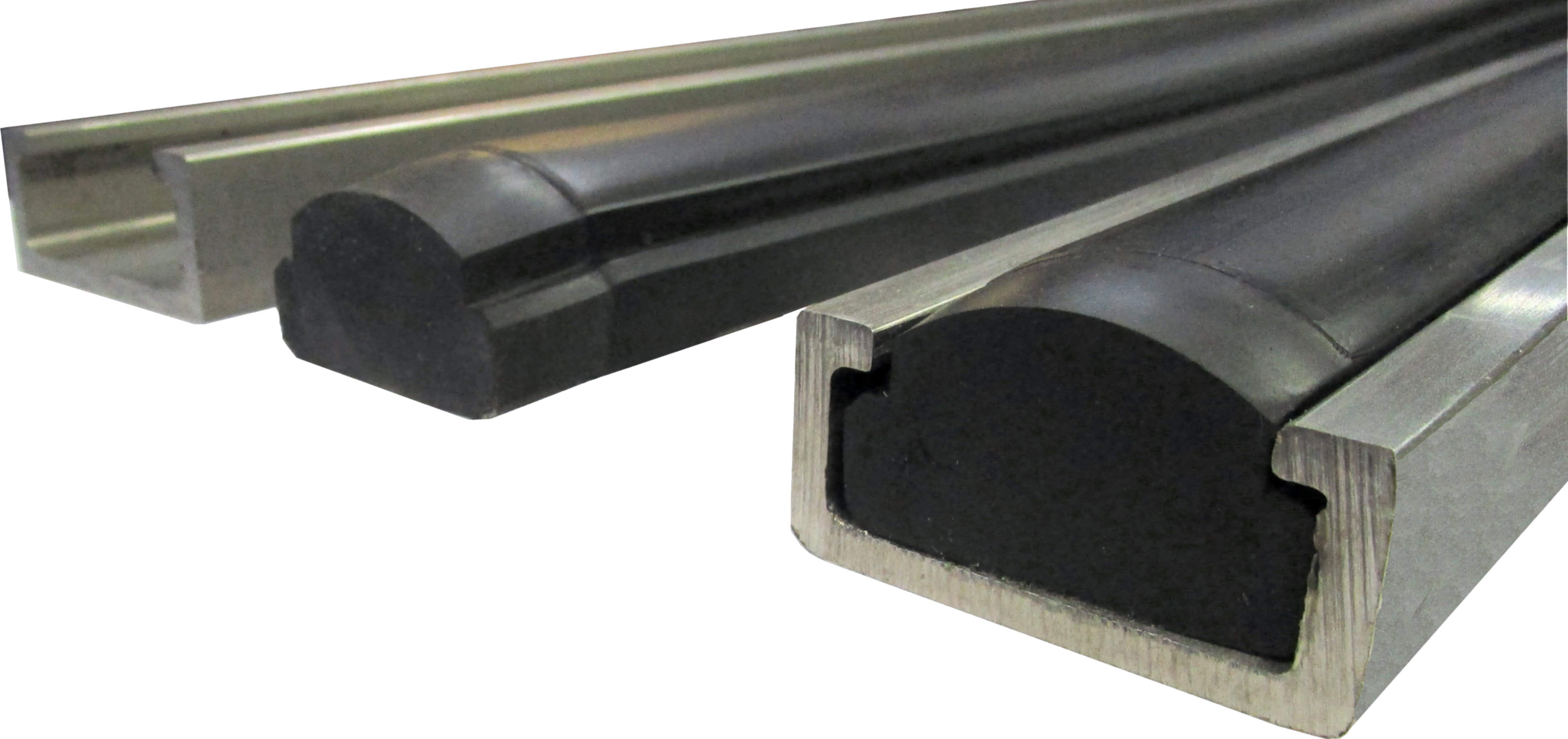

The shape of the sensor and of the support have been designed for quick and easy installation. The sensor can be folded so that it can slide directly into support SUP2.

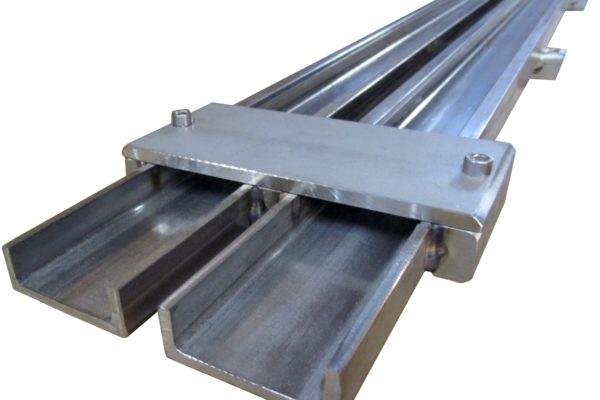

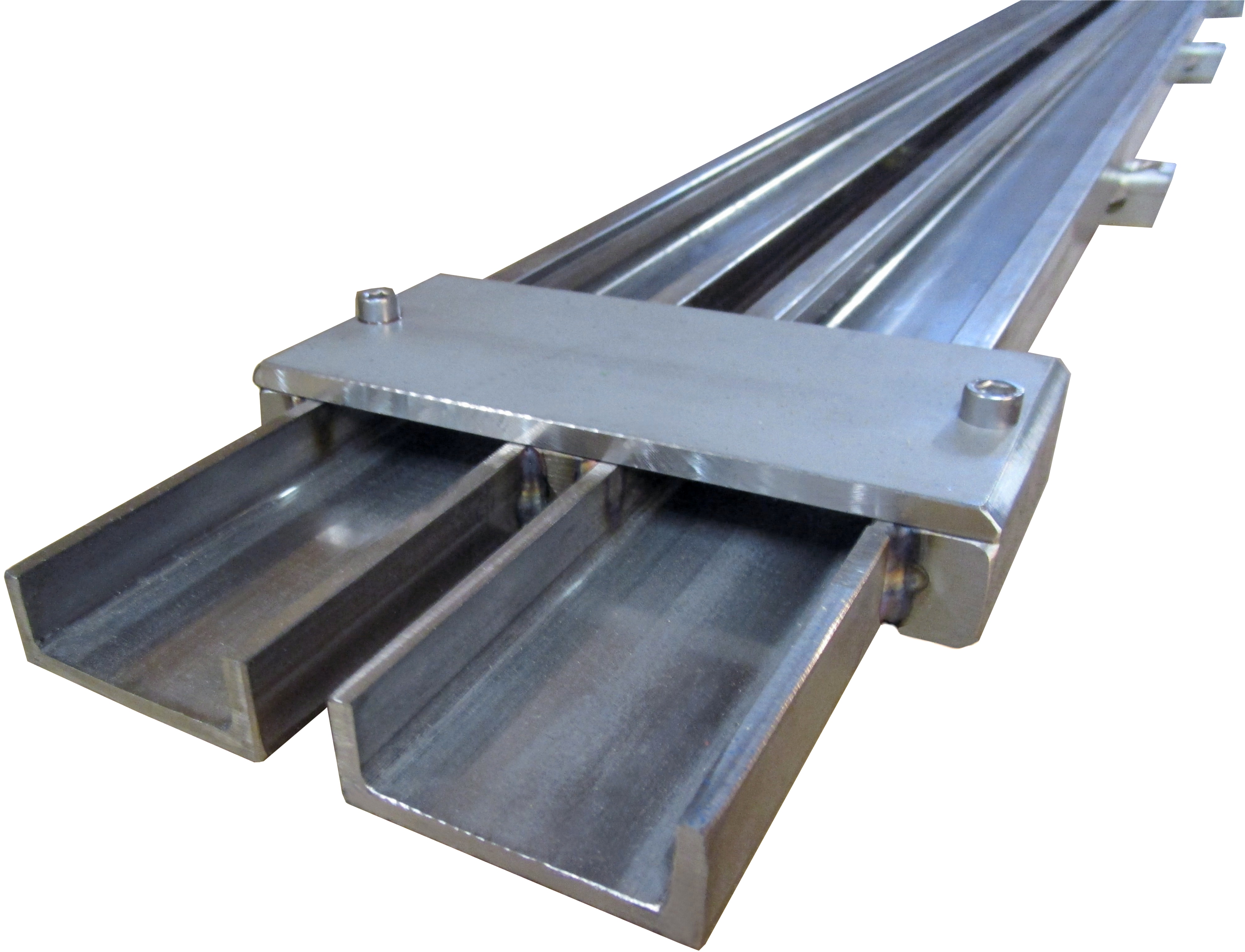

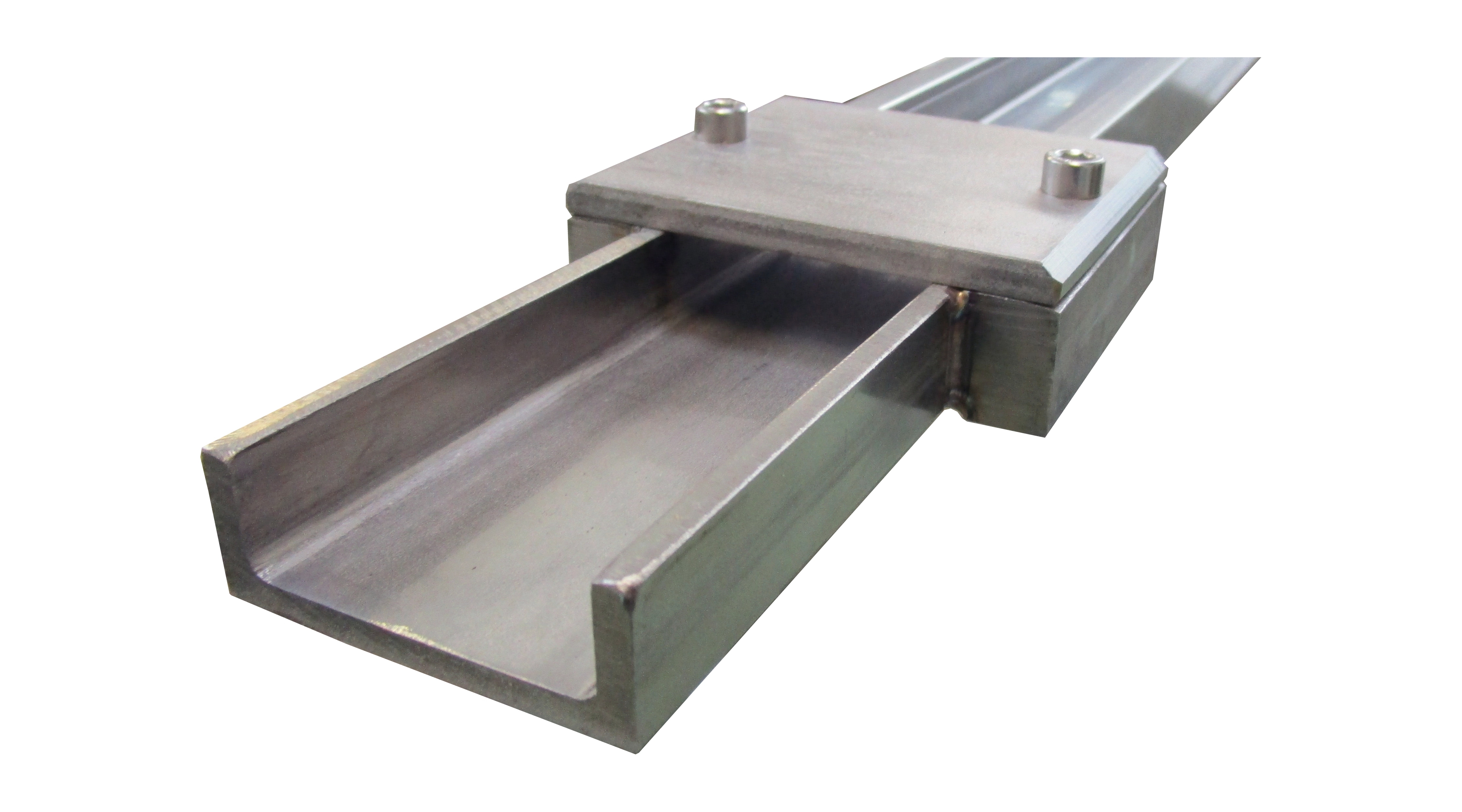

2 resistive sensors can be installed in the same support (facing each other) and a flange will be installed at each end of the stainless steel support for good grip of the sensor sleeve.

  • Material : Extruded stainless steel,
  • Thickness : 4mm (0,16 inch),
  • Weight : 3.90kg/ml,
  • Maximum number of profiles : 4,
  • Maximum length of a profile : 4m (13,12 feet) (without flange),
  • Minimum length of a profile : 50cm (1,64 feet) (without flange),
  • Installation resin : P5G.
