Purposes:

• Toll gates

• Post-classification and pre-classification

• Wheels and axles detection from 0 to 80 km/h

• Axles counting, classification, speed

• Sensor securely attached to support

• Detection: over 80 kg

• Insensitive to slab vibration

• Sensor can contain 1-2 sensitive elements

• Length customised to each site

• Resin : P5G

• Connecting cable length 2 to 100 meters

• MTBF of more than 2 million axles


Specification

Purposes:

• Toll gates

• Post-classification and pre-classification

• Wheels and axles detection from 0 to 120 km/h

• Axles counting, classification, speed

• Sensor not glued in its support

• Very easy maintenance

• Easy sensor installation and replacement (10 min)

• Sensor activation with only 50kg

• Insensitive to slab vibration

• Sensor can contain 1-2 sensitive elements

• Length customised to each site

• Connecting cable length 2 to 100 meters

• Resin : P5G

• MTBF of 4 million axles for perpendicular sensor

• MTBF of 2,5 million axles for inclined sensor

• MTTR of 10 minutes


Specification

The RES-2-LF sensor has the same characteristics and is intended for the same applications as RES-2 sensor.

Some sensors saw passing more than 9 million axles (4.5 million vehicles all categories) with an error lower than 3 per 100 !

See the document from Don Muang Tollway Public Co., Ltd, Bangkok, THAILAND).

Specification

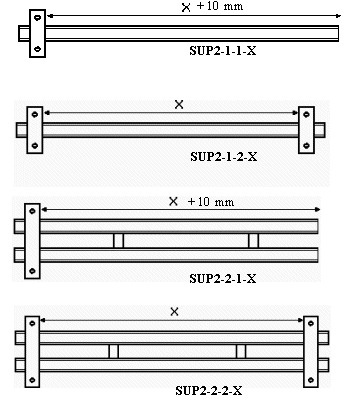

Characteristics:

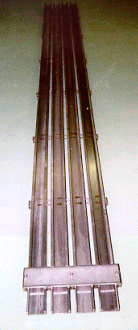

• Stainless steel extruded treadle (304 L)

• Weight : 3,90 kg/m

• Metals sections assembled by soldering

• Sensors installation easy, fast and without glue
