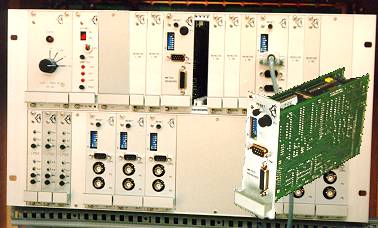

EOS takes the place of an intelligent detector for the HESTIA station.
EOS has the advantage of sharing its power supply and communications line with the traffic analysis station.
EOS measures the minimums, maximums and averages per period.
Sensors
Temperature & Humidity |
Presence of Rain |
|
|
Wind Speed |
Wind Direction |
|
|
Road Temperature & State of the Roadway |
Fog & Visibility
|
|
|
Pressure sensor |
Rain metering
|
|
|
Environment
Detection and measurement of gas concentration :
- CO (0-100 or 0-300 ppm),
- NO (0-50 ppm),
- NO2 (0-50 ppm),
- H2S (0-20 or 0-100 ppm)
|
|
Environmental Unit
- Detector for HESTIA rack,
- 8 analog inputs (10 bit converter),
- 4 all-or-nothing inputs,
- 4 all-or-nothing outputs,
- interface unit with protection,
- determination of averages, minimums and
maximums for periods of 1, 5, 6, 10, 15,
30 and 60 min.
|
|
|
