Stainless Steel support SUP1

Stainless steel support for RES1 sensor : SUP1

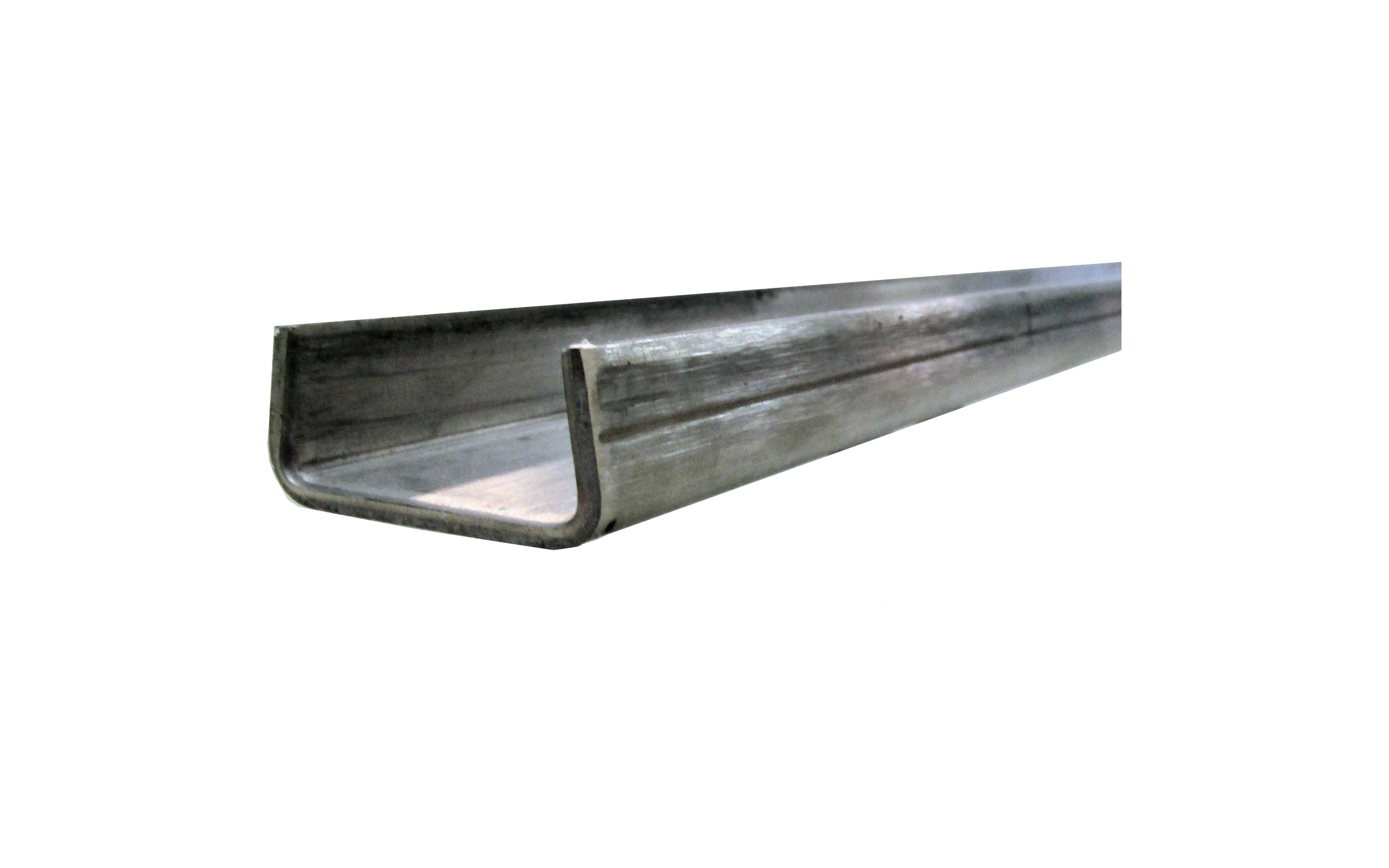

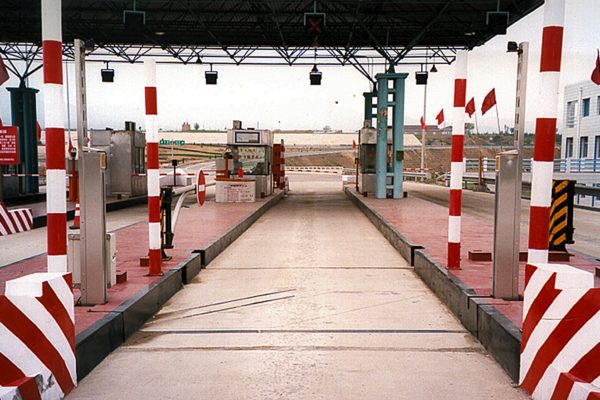

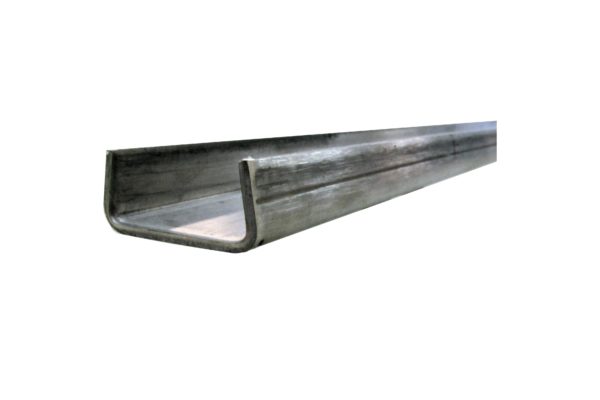

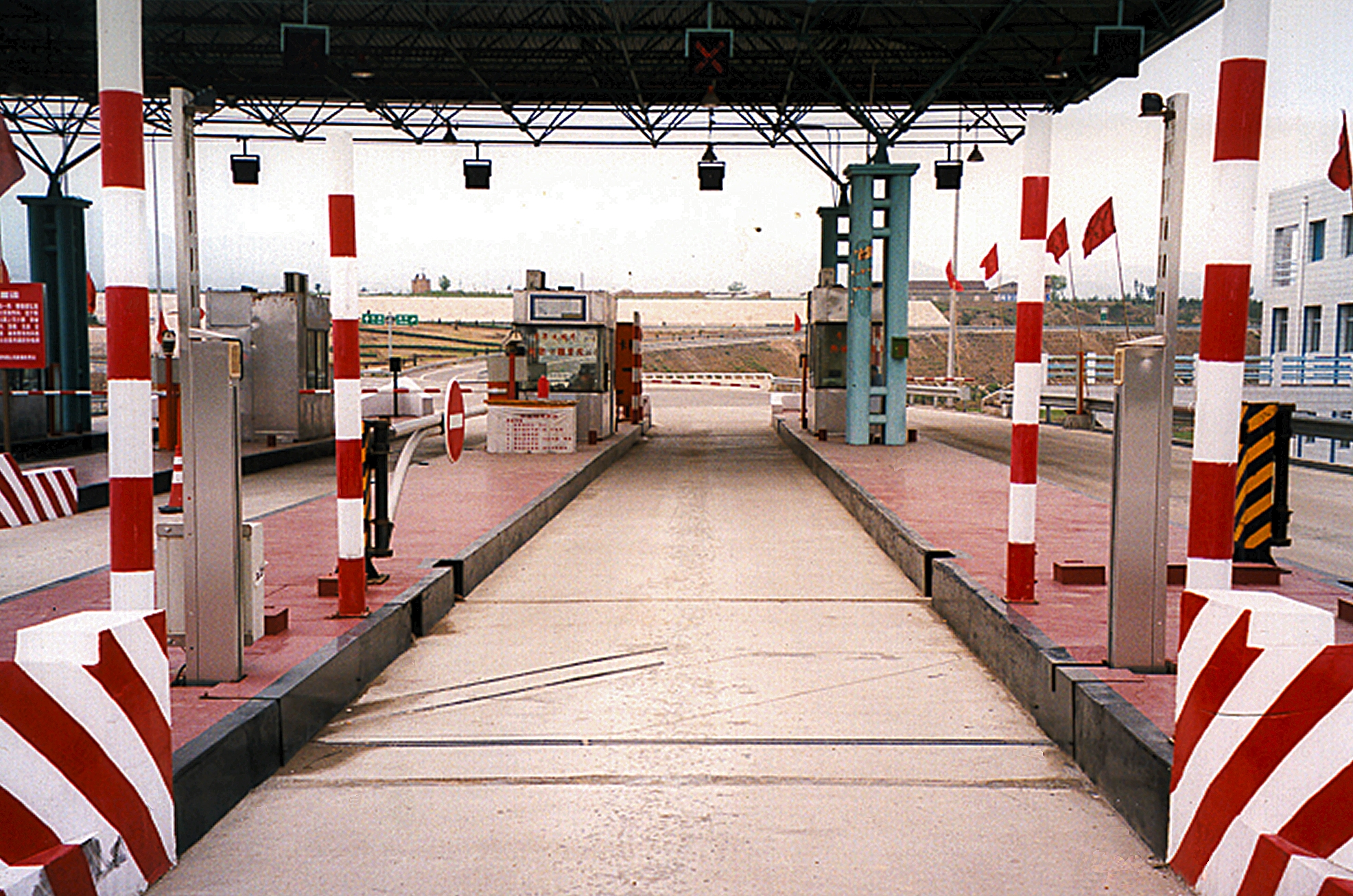

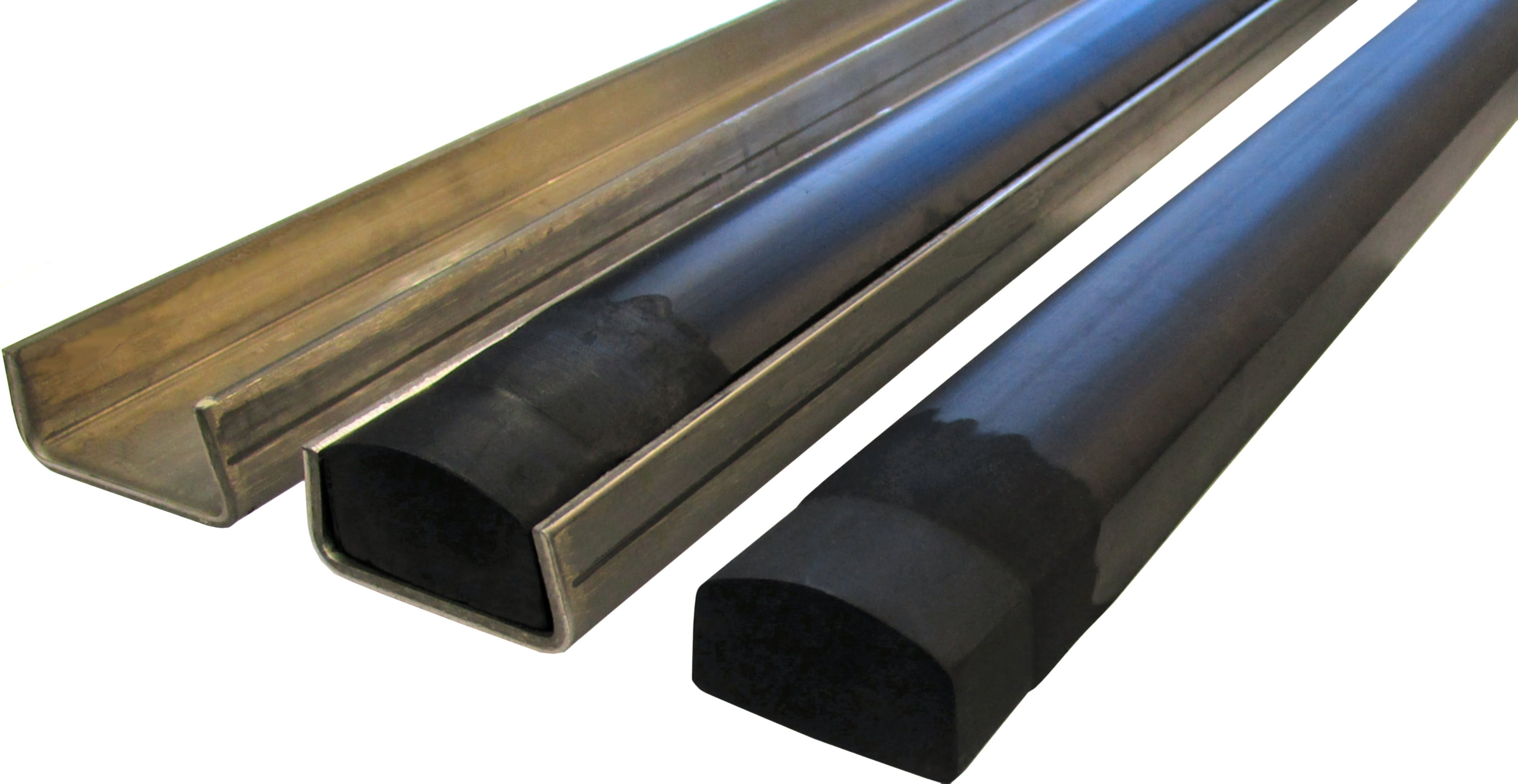

SUP1, the extruded stainless steel support, is installed directly into a toll lane. Its trapezoidal shape has been developed for direct insertion of the RES1 sensor inside. This means optimal grip of the sensor in its support during the passage of vehicles.

Furthermore, the 3 mm thick stainless steel support has been designed to withstand the major pressure of truck wheels and the weather conditions.

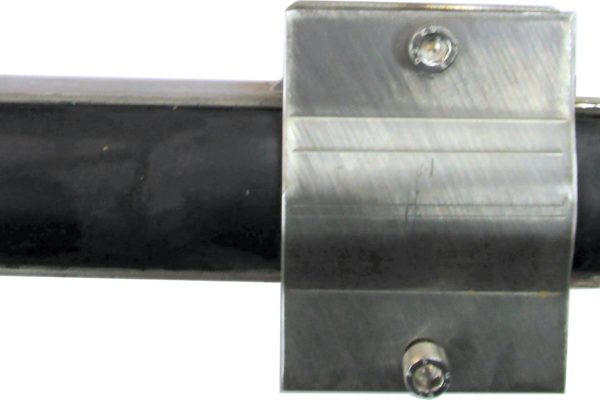

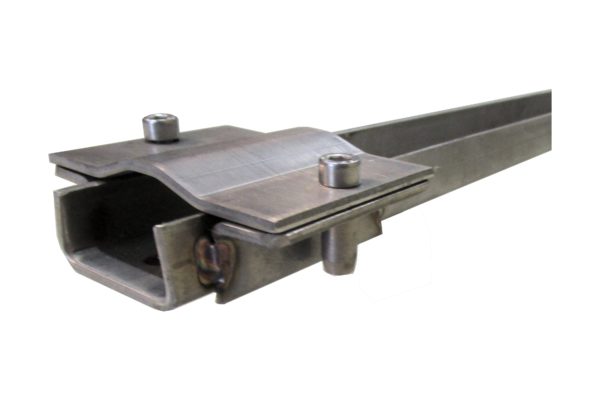

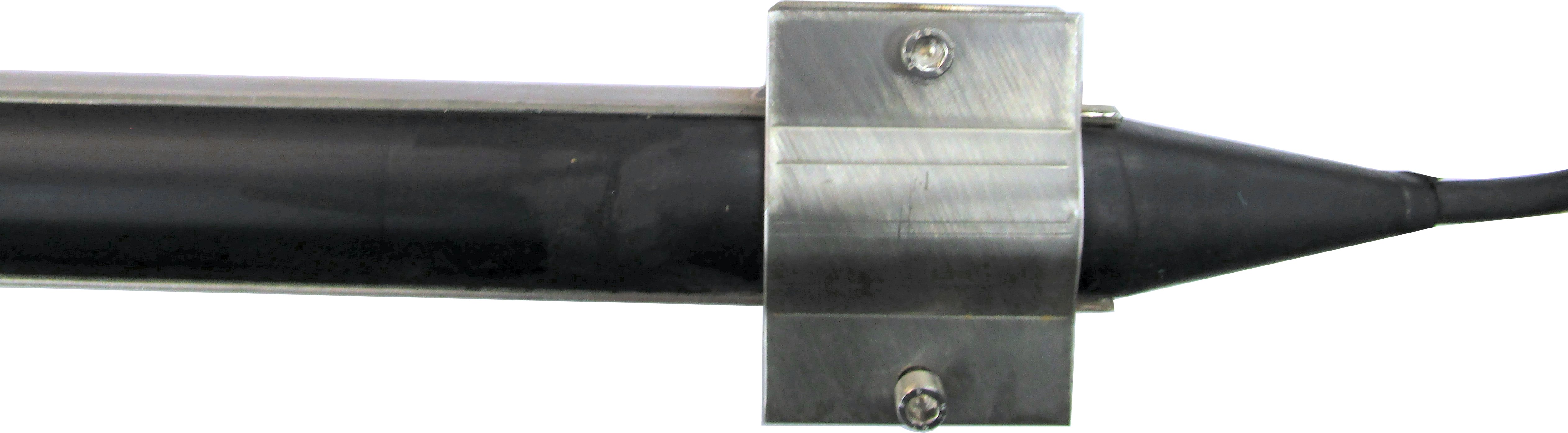

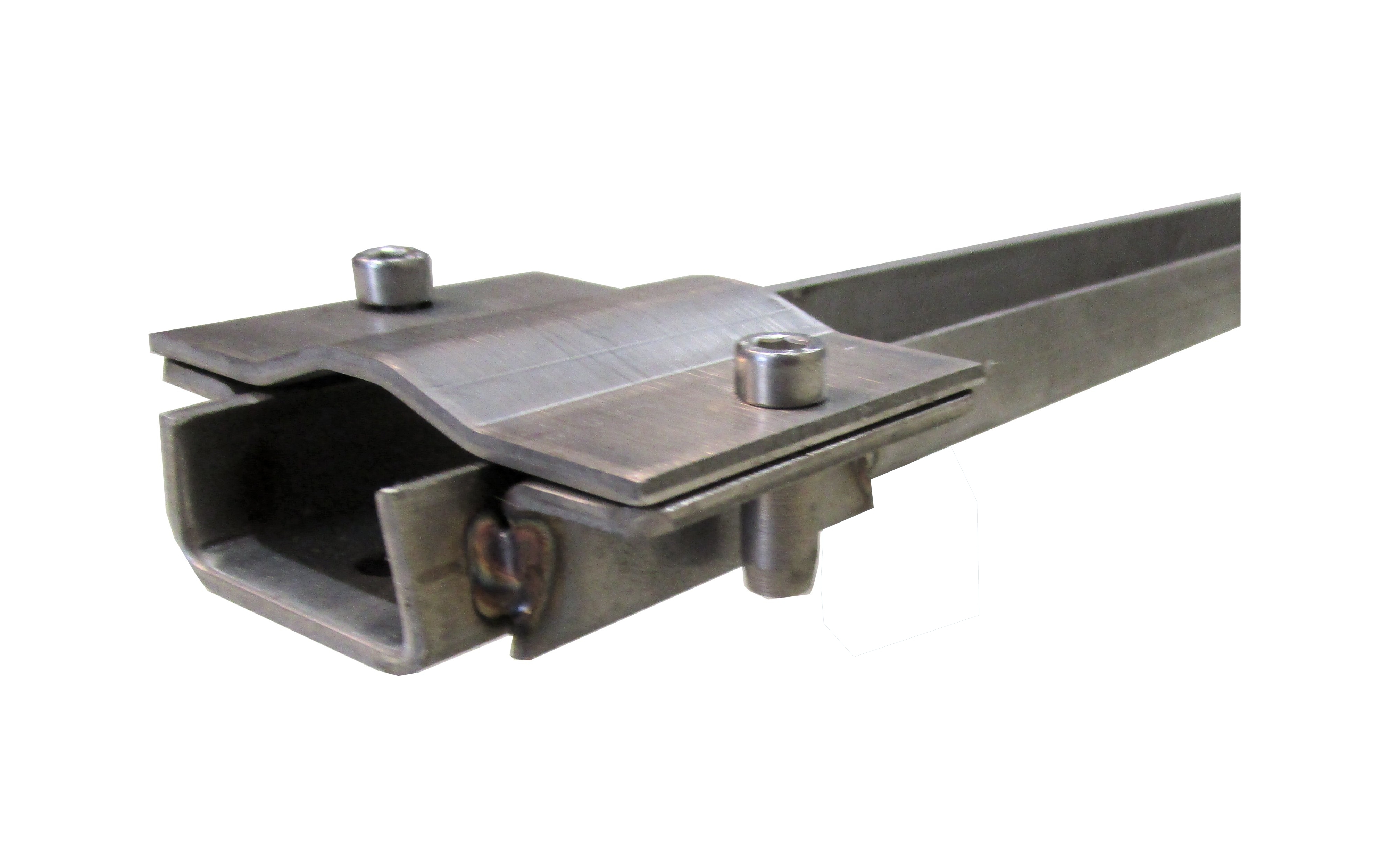

A flange at the end of the support protects and holds the RES1 sensor’s sleeve.

Key features :

SUP1 supports can be tailored to different needs, with choice of the :
- Length of the profile,
- Number of profiles,
- Number of flanges.
To ensure optimum grip in the road surface, the support must be installed with P5G installation resin.

OperationSpecificationsPicturesDocumentations

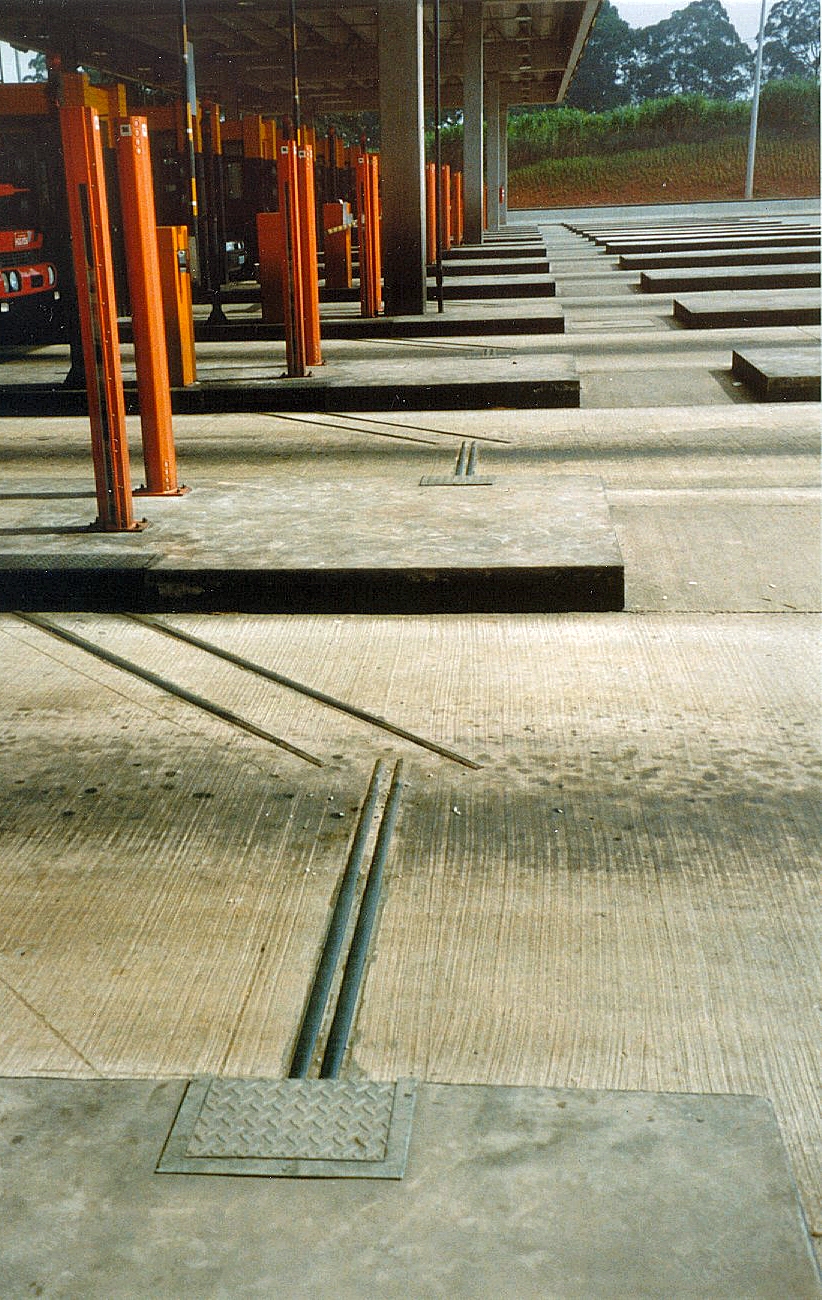

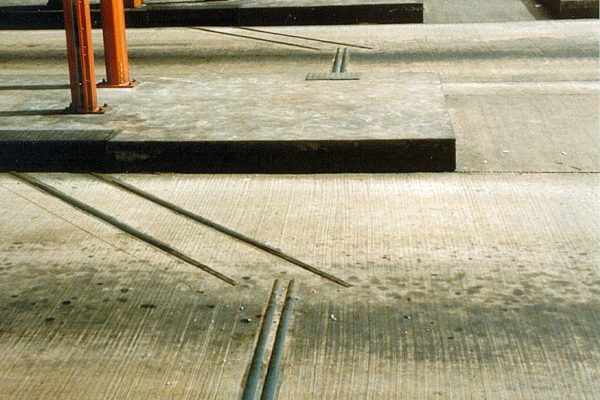

The SUP support’s flange must be installed in a slot in the pavement to protect the resistive sensor sleeve.

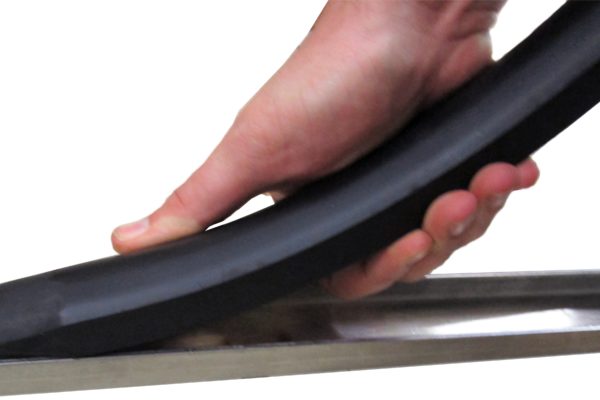

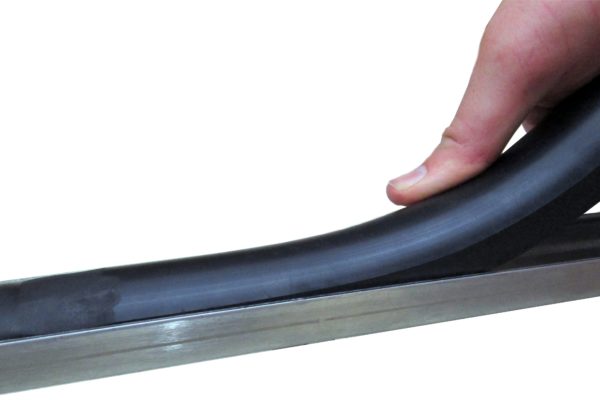

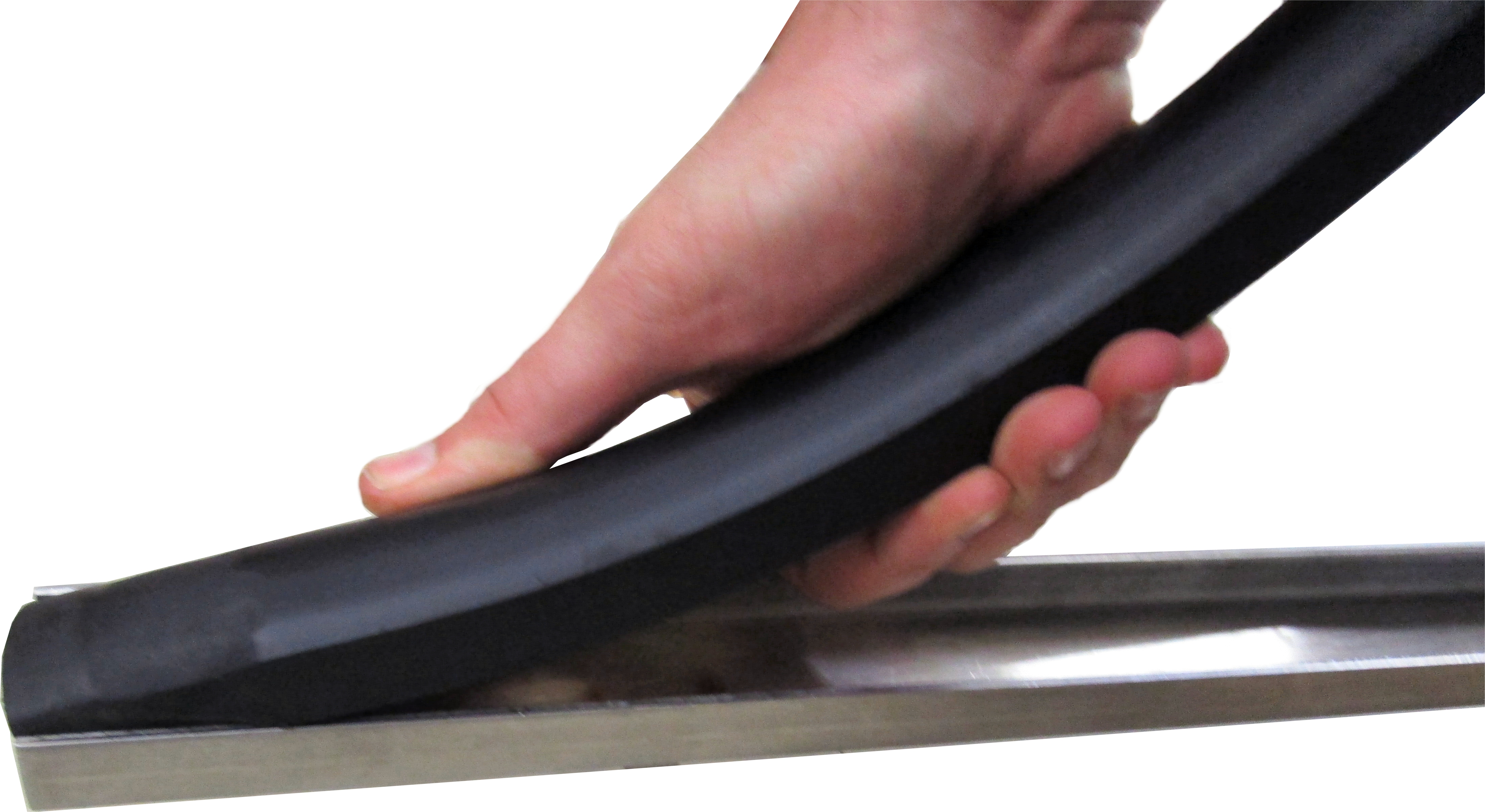

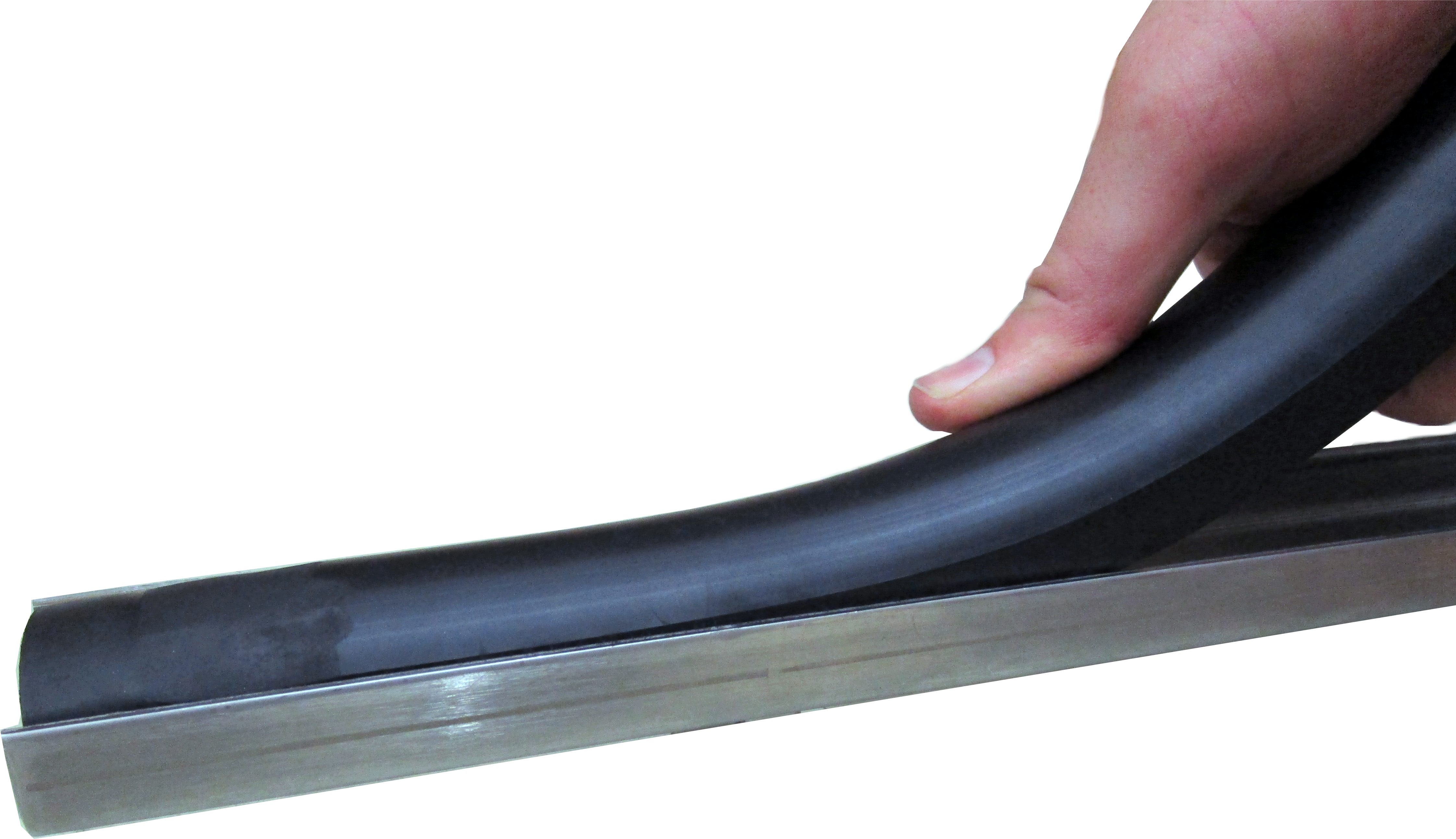

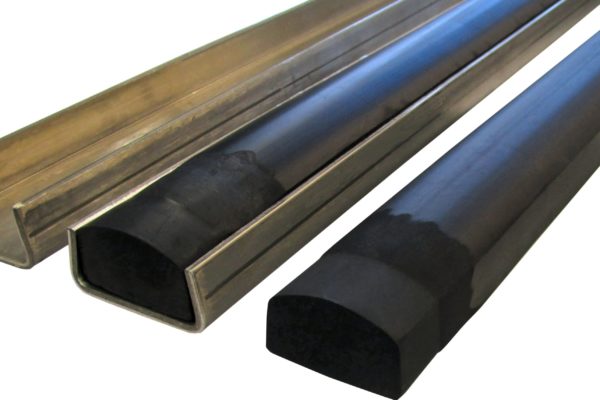

The sensor can be folded so that it can be inserted directly into support SUP1. Its trapezoidal shape as well as the acrylic glue make it possible to ensure optimal grip of the sensor in its support.

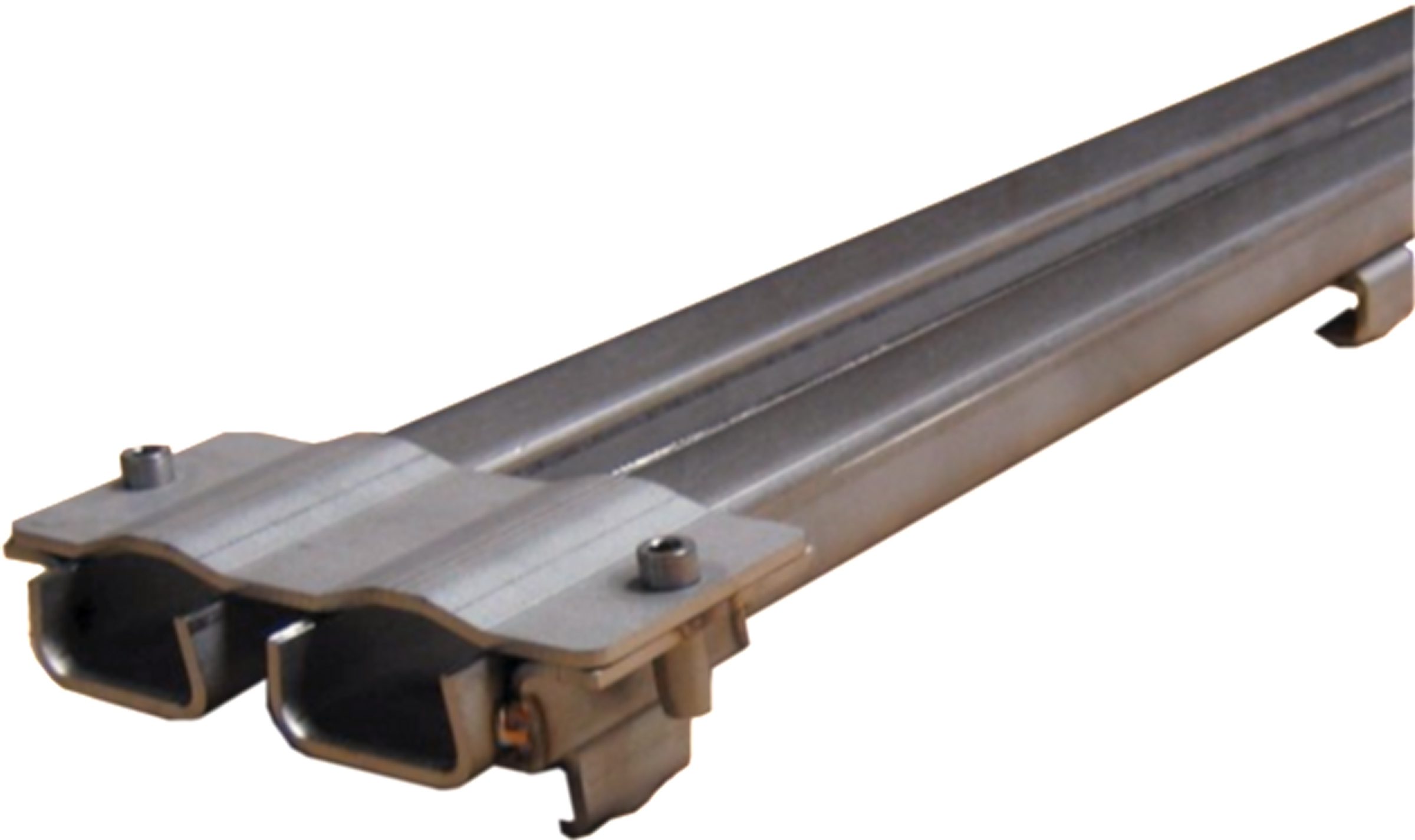

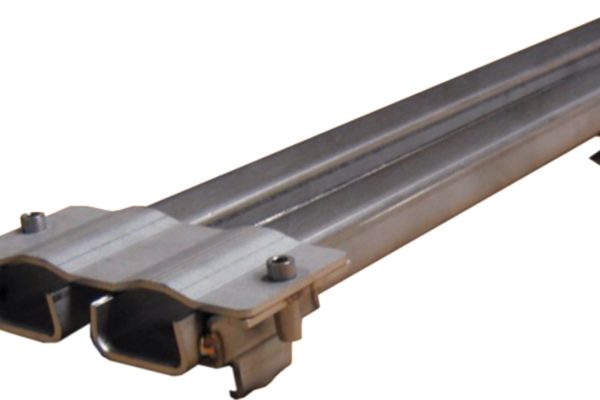

2 resistive sensors can be installed in the same support (facing each other) and a flange will be installed at each end of the stainless steel support for good grip of the sensor sleeve.

Material : Extruded stainless steel,
Thickness : 3mm (0,12 inch),
Weight : 2.40kg/ml,
Maximum number of profiles : 4,
Maximum length of a profile : 4m (13,12 feet) (without flange),
Minimum length of a profile : 50cm (1,64 feet)(without flange),
Installation resin : P5G.
